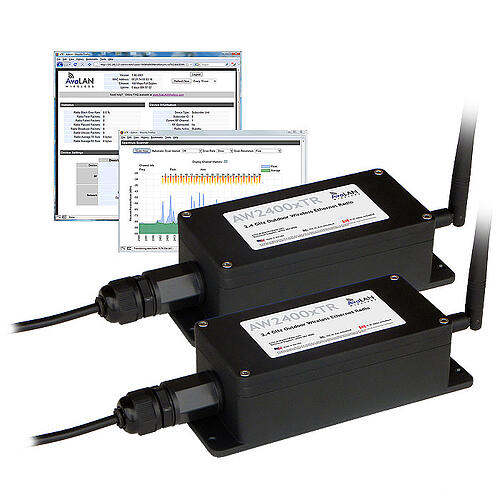

AW2400xTR Pair 2.4 GHz Outdoor Wireless Ethernet Radio

A robust and reliable product that allows you to build non-line-of-sight, point-to-point and point-to-multipoint wireless Ethernet connections.

The AW2400xTR Pair 2.4 GHz Outdoor Wireless Ethernet Bridge:

The AW2400xTR-PAIR is a robust and reliable product that provides you with a pre-configured non-line-of-sight, point-to-point wireless Ethernet bridge that connects “fringe” IP devices, including IP access control readers, remote printers, remote PCs, VoIP phones, point-of-sale devices, digital signage or industrial control devices.

Two versions are available: this preconfigured matched pair point-to-point Ethernet bridge — the AW2400xTR-PAIR and a single radio — the AW2400xTR, configurable as an access point or client in point-to-multipoint applications.

The 2.4 GHz band is the most globally accepted unlicensed portion of the RF spectrum. AvaLAN’s unique solution offers 29 non-overlapping channels and maximum legal power to provide five times the range of Wi-Fi through walls or line-of-sight.

The AW2400xTR-PAIR radios are packaged in weatherproof rugged cast aluminum enclosures that meet the IP66 Standard for water and dust resistance. They are equally at home in a factory full of machinery or atop a power pole.

The AW2400xTR-PAIR radios include a built-in web browser interface for
remote configuration, status monitoring and firmware update. This interface also provides a spectrum analyzer to help diagnose interference issues.

AvaLAN’s products offer the ideal combination of price, range, data rate, security, interference avoidance, quality-of-service, and a simple plug and play set up with minimal user programming required.

Key Features:

Outdoor IP 66 castOutdoor IP66 cast aluminum enclosure for industrially hardened applications aluminum enclosure for industrially hardened applications

29 non-overlapping channels providing unique flexibility to avoid or penetrate interference

Five times greater range than Wi-Fi, through walls or line-of-sight

Up to 30 mile range to connect to difficult locations

128 bit AES encryption, FIPS 197 – NIST Certified

Browser interface provides easy user-programming, remote diagnostics and link analysis including a graphical RF spectrum analyzer

Can operate up to 29 access points, each on its own non-overlapping channel with up to 16 clients per access point

4 Watts EIRP, Maximum legal radiated power for long range penetration

One Watt power consumption is ready for solar applications

-40º to +75ºC for extreme temperature operation

Power over Ethernet for easy single cable installation


Add-Ons:

  • AW2-2400 – 2.4 GHz Omnidirectional 2 dBi Antenna
  • AW19-2400 – 2.4 GHz Directional 19 dBi Panel Antenna
  • AW12VA – Auto Adapter
  • AW-12VPS – Volt Power Supply
  • AW24VC – AC to DC Power Converter
  • AW-LA – Lightning Arrestor
  • AW-E4 – Strain-Relieved Ethernet Pass Through
  • AW-XPM – Pole Mounting Plate
  • AW-POE – Power Over Ethernet Injector
